Honeypot Project 2023 Logs and Architecture
Learning from the failures of last year I changed several tactics within my approach. If I wanted to increase my documentation I needed to make it easy so I did.
I decided to track my notes using the note feature of Proton Pass (don't worry no sponsored content coming).
Remembering the $700 Microsoft Azure Invoice from 2022 I thought it's just a project and it's not like you're getting funding for this; use some second rate IAAS service.
So after I made my Contabo Account (show me the lie 😒) I began what was a disaster of a build.
After attempting to build on Contabo's Virtual Private Server failed for last time prior to the snapping of my final nerve, I realized that I spent 6 hours on what took me 20 mins the year prior. As any security professional with other things to do with the rest of their life I went back to Azure and had the honeypot live inside of 2 hours.
The next day remembering the honey sniping attack of 2022 (targeting a honeypot with various resource denial methods) I shut down some of the ports related to conpot. This was done for a more realistic looking server. Conpot replicates the behavior of ICS and SCADA systems which are hardware based, and my honeypot can't help but tell that it is a VM. The drawback of using Azure is that the public IP is listed as a microsoft datacenter for web host aka the cloud aka you are hitting VM.

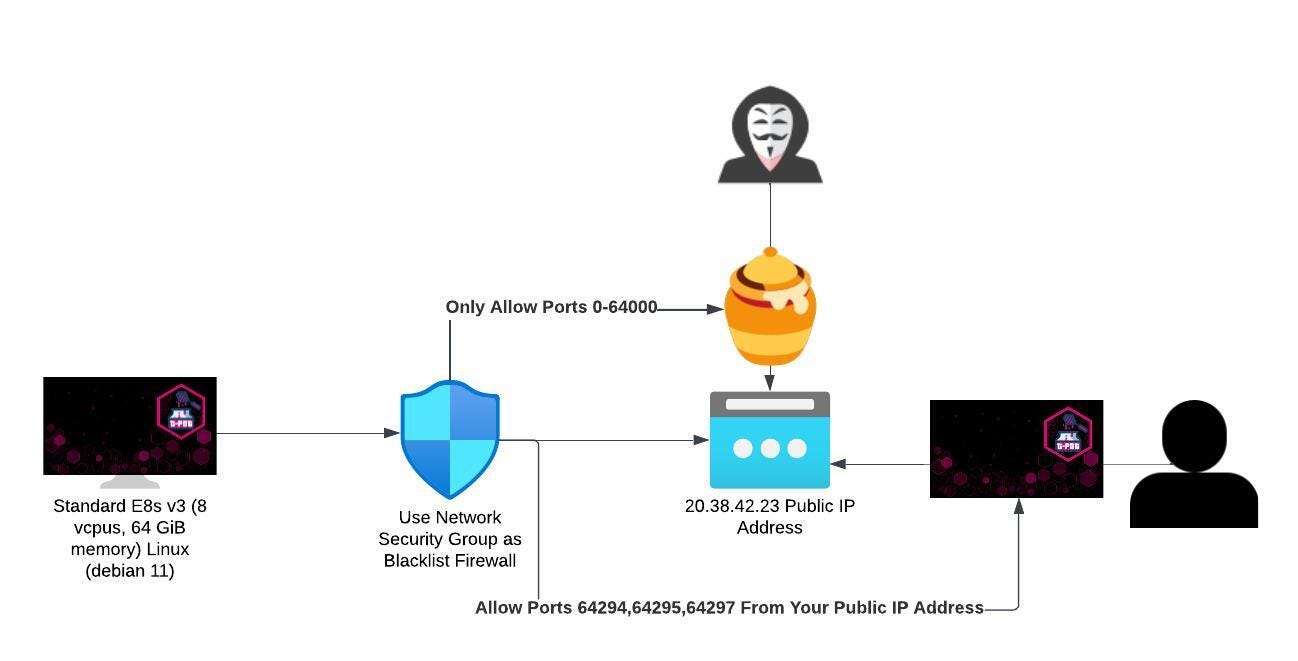

Here is where I settled:
The build logs and notes are below shoot me an email (akyl.phillips@mogulsuccess.com) if you need me to decipher the stone carvings below:
(20230826)
14:57PM- Purchased Contabo VM
15:07PM- Received VPS Login
16:02PM- generated new root pw:AvJM0m8KDQMPRhB4
1603- Pw Reset Test Status:Started
16:04- PW Reset Test Status: Successful
16:05 ->24
Standard Install (git clone https://github.com/telekom-security/tpotce
cd tpotce/iso/installer/
./install.sh --type=user)
webuser:**REDACTED**
webpw: **REDACTED**
16:32- TPOT Management Console Accessed after another restart
16:25 Script disabled Root Access to ssh
16:44- Installation Successful, however logins fail, attempting pw reset:**REDACTED**
16:45- PW Reset Reported Successful By Contabo
16:46- Restart Initiated
16:48- Restart Complete
16:50-16:54 Sever Reset (Initiated:Completed)
16:56- [root@vmi1440858:~# history
1 history
2 apt update
3 apt upgrade
4 history]
16:57- apt install git
16:58 : git clone https://github.com/telekom-security/tpotce
16:59- cd tpotce/iso/installer/
17:00- ./install.sh --type=user
webusr- **REDACTED**
webpw- **REDACTED**
17:05-17:08 TPOT Installation Started : Complete
17:17: Restarting Install with following comment in mind.{Cockpit and SSH are accessed by the user when you set up your machine. If you only had a root user to begin with then any login on Cockpit and SSH will fail for security reasons. You have to create another user locally on your machine then and this user to the sudo group in /etc/group.
Also, you probably hit the authentication limit of fail2ban. Review the status of the jails with fail2ban-client status and by adding the <jail name> you can check if a ban is currently active. With fail2ban-client unban --all you unban all blocked IPs again.} - github tech noted. follow same step next entry at newuser creation for mgladmin
17:24- [Cmds:
1. apt update
2. apt ugrade
3. apt install git
4. git clone https://github.com/telekom-security/tpotce
5. cd tpotce/iso/installer
6. ./install.sh --type=user
7. y (to continue and let the script handle the setup for basic/commonly used protocols)
8. Select "Standard" in the T-POT Installer Wizard
9. Type in Name of User
10. Type in PW and Repeat
17:45- T-POT Installation W/privilegeduser Complete
17:48- (https://154.53.63.139:64294/) accessed
17:49- PrivUser used to access Debian Admin Mgmt GUI (/lib/systemd/system/networking.service
failed to start)
1756- [TS] [Logs]systemd
networking.service: Failed with result 'exit-code'.
CODE_FILE src/core/unit.c
CODE_FUNC unit_log_failure
CODE_LINE 6099
INVOCATION_ID 4940dd687b9b46269429f7b8b8ea08ce
MESSAGE_ID d9b373ed55a64feb8242e02dbe79a49c
PRIORITY 4
SYSLOG_FACILITY 3
SYSLOG_IDENTIFIER systemd
TID 1
UNIT networking.service
UNIT_RESULT exit-code
_BOOT_ID 6d5849fae32348ce811144fb899fd3c5
_CAP_EFFECTIVE 1ffffffffff
_CMDLINE /sbin/init
_COMM systemd
_EXE /usr/lib/systemd/systemd
_GID 0
_HOSTNAME seniorpocketbook
_MACHINE_ID 9608359ded2fb1d447a4ad7564ea96e3
_PID 1
_SELINUX_CONTEXT unconfined
_SOURCE_REALTIME_TIMESTAMP 1693097735812150
_SYSTEMD_CGROUP /init.scope
_SYSTEMD_SLICE -.slice
_SYSTEMD_UNIT init.scope
_TRANSPORT journal
_UID 0
__CURSOR s=9d050f13089a4970ba36648c5f2a32a4;i=2e48;b=6d5849fae32348ce811144fb899fd3c5;m=221e8075;t=603dd091cf844;x=545bb252ab5009
__MONOTONIC_TIMESTAMP 572424309
__REALTIME_TIMESTAMP 1693097735813188
[END]
Scrapped (Know when the juice isn't worth the squeeze and change directions)
19:20 Migrating Honeypot Infrastructure to Azure (ServeName:dictation591 In Azure US WEST 3 Arizona) https://www.datacenterdynamics.com/en/news/microsoft-launches-new-west-us-3-azure-region-in-arizona/ [E Series Standard_E8s_v3 - 8 vCPUs, 64GiB Mem $367.92/month 😒skin in the game]
19:29- Generate new PW
**REDACTED**:**REDACTED**
19:31- Azure Create A VM -> []✔️ for "Delete public IP and NIC when VM is deleted " *Easy clean up*
19:40- Login to Azure VM (20.168.8.13) via SSH
19:45- CMDs 1 sudo apt update
2 sudo apt upgrade
3 sudo apt install git
4 sudo git clone https://github.com/telekom-security/tpotce
5 cd tpotce/iso/installer/
6 history
-> sudo ./install.sh --type=user TPOT Install initiated
19:47- Web User:**REDACTED**
WebPass:**REDACTED**
19:55 Azure T-POT Build Complete
Opening NSG with scoped in /granular IPV4 for T-Pot Admin Port (64294-HTTPS 64295-SSH 64297-Tools)
20:19- **REDACTED**:server (Note Azure is in UTC time)
20:31-20:41 T-Pot Install Initiated:Completed and Verified (No Errors)
20:42 combinedspacing:hostname IP:20:168.2.111
21:00- Rebuild initiated due to 2fa.sh script (Make back up user)
Made with backup usr mglcortext
TPOT USR: **REDACTED**
21:37- 2023 Honey Pot Deployment ✅
22:00- 5555,5000,8443,23,53,11112,21,42,135,445,993,995,1080,,3306,8081,143,110,389,1433,1521,5432,5900,6379,8080,9200,11211,123,631,25565,2575,5060 -Open
(20230827)
06:30- Conpot Ports Shut (HoneyPot Optimization Effort)
